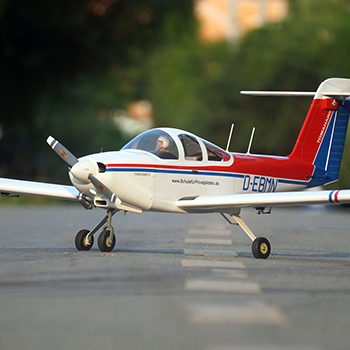

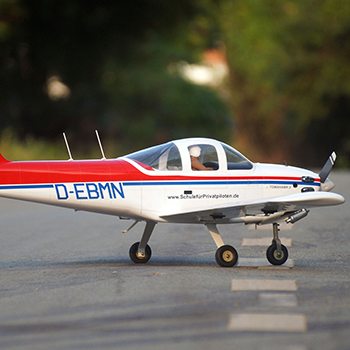

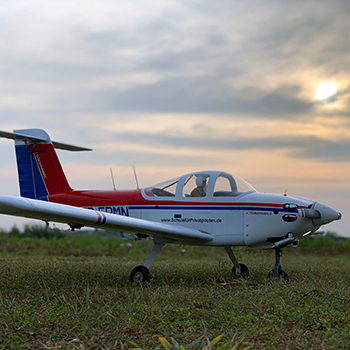

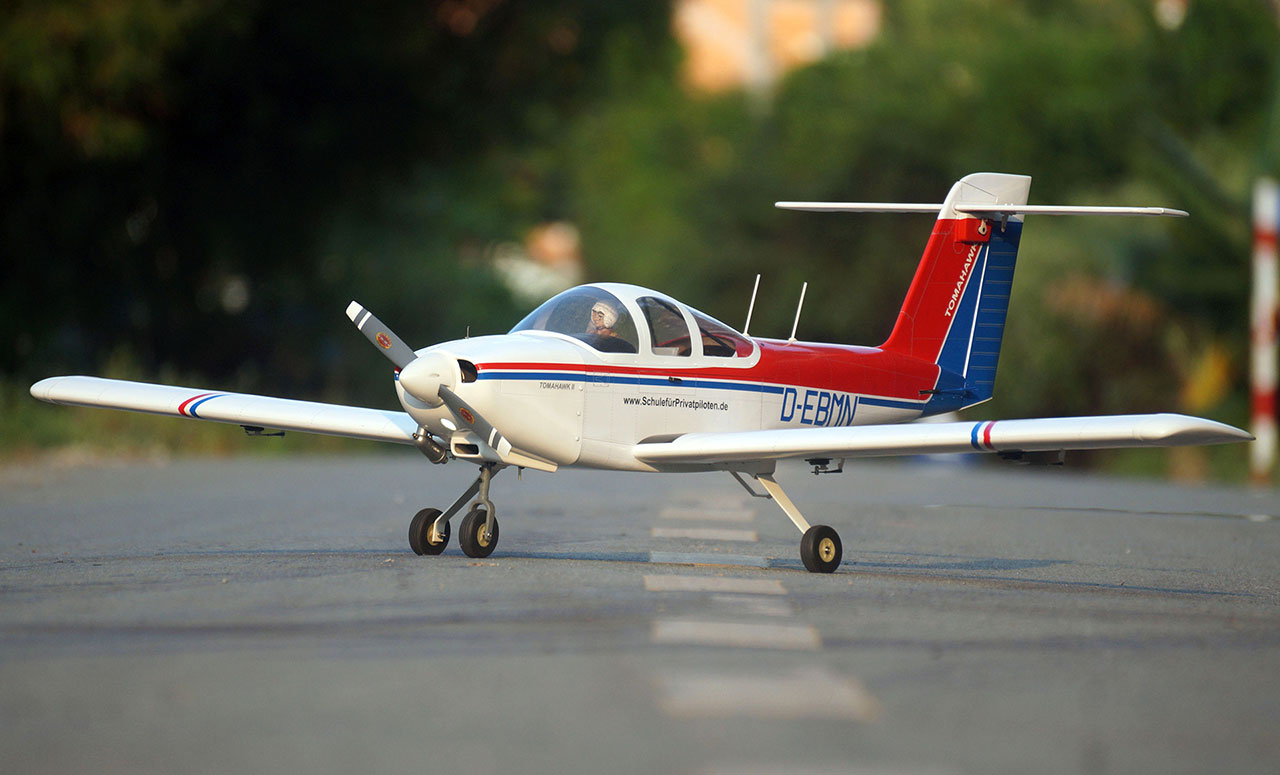

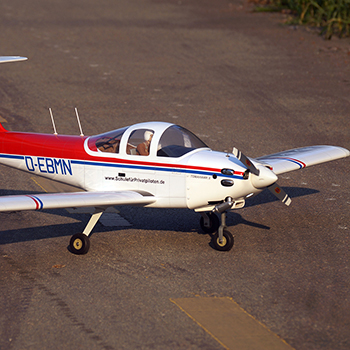

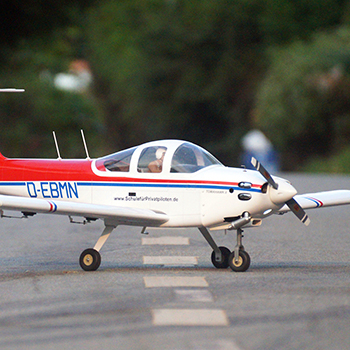

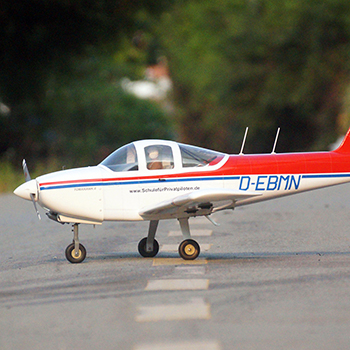

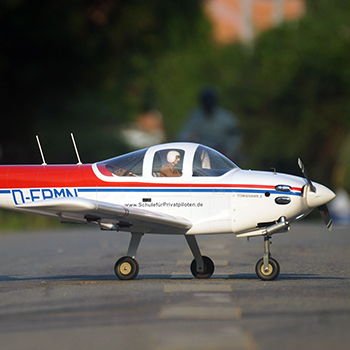

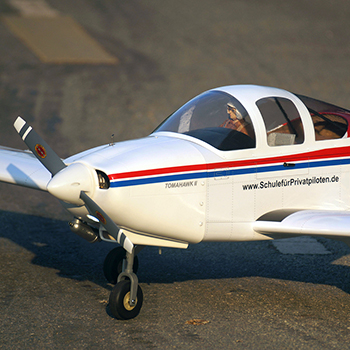

Piper PA-38 Tomahawk 'Red/Blue' 69.7in Wingspan ARF

Additional Images:

  Click On Images to Enlarge

Overview

The Tomahawk is a single-engined low-wing cantilever monoplane with a T-tail and an enclosed cabin for two. It has a fixed tricycle landing gear and is powered by a Lycoming O-235 four-cylinder piston engine with a twin-bladed tractor propeller. The Tomahawk has two front-hinged doors for access to the cabin.

The Tomahawk was Piper's attempt at creating an affordable two-place trainer. Before designing the aircraft, Piper widely surveyed flight instructors for their input into the design. Instructors requested a more spinnable aircraft for training purposes, since other two-place trainers such as the Cessna 150 and 152 were designed to spontaneously fly out of a spin. The Tomahawk's NASA GA(W)-1 Whitcomb airfoil addresses this requirement by making specific pilot input necessary in recovering from spins, thus allowing pilots to develop proficiency in dealing with spin recovery.

The Tomahawk was introduced in 1977 as a 1978 model. The aircraft was in continuous production until 1982 when production was completed, with 2,484 aircraft built.

VQ Models introduced the PA-38 Tomhawk in size 60 , this is a popular size when you have a lot to choose from , you can go for a Nitro engine 60-2 stroke , an 82 – 4 stroke nitro engine or a 10cc gasoline engine . You can also use an electric motor (like the Boost 60) and easily install a 5S - 5000 AmH battery. And no matter what you attach, this PA-38 still flies like a lowing trainer.

Features:

• All balsa and lite-ply construction
• Fiberglass cowling
• Control surfaces pre-hinged and installed
• Detailed cockpit
• Aluminium landing gear
• Detail Cockpit with 3D Printed Full Body Pilot
• 3D Scale Printed Pilot Seat
• Canopy preinstalled
• Battery hatch
• Two piece wing with aluminium tube wing joiner

Includes:

• Gear assembly
• Wheels
• Aluminium wing joiner
• Aluminium landing gear
• Decals and all hardware
• Engine mounts
• Fuel tank
• Motor mount

Does not include: radio, motor, glue, and silicon fuel line

Specifications:

Required Hardware (Not Supplied):

• Nitro Engine required : .65 (2 stroke) or .82-91 (4 stroke)
• Gas Engine required : 10cc
• Radio req : 7 channels with 8 servos
• Standard Servo : 4 pcs (2 for Aileron, 1 for rudder, 1 for nose gear )
• 19 Grams servo : 4 pcs (2 for elevator, 2 for flap (and 1 for throttle if use nitro engine)
• Electric Motor : Boost 60
• Battery : Lipo 4-5S /5500 mAh

Video

VQ Model Piper PA-38 Tomahawk 60 size EP-GP
