Pilatus PC-7 (Viper) 59" Wingspan ARF

Buy On Hobbyplastic.co.uk

Additional Images:

Click On Images to Enlarge

Overview

The Pilatus PC-7 Turbo Trainer is a low-wing tandem-seat training aircraft, manufactured by Pilatus Aircraft of Switzerland. The aircraft is capable of all basic training functions including aerobatics, instrument, tactical and night flying.

This accurate replica of the Pilatus PC-7 features an all light-ply balsa construction. The detailed covering make it a beautiful addition to everyone's hangar. The professional painted fibreglass cowl as well as pre-hinged control surfaces will have you in the air in no time.

Features

Rudder, coupled to steerable nose wheel
Elevator
Ailerons
Throttle
Fixed undercarriage (Electric retracts sold separately - VQARE13S)

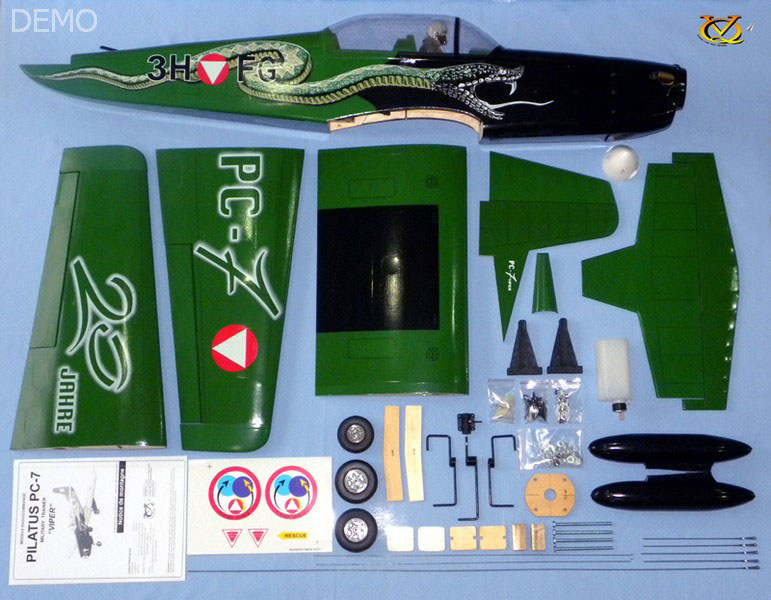

Includes

Assembly instructions with stage-by-stage illustrations - [ Download ]
Fuselage
Wheels
Wing panels
Tail plane and fin
Undercarriage
Small items
Linkage hardware pack

Required Hardware (Not supplied)

Transmitter, Motor, Propeller, Servos, Battery, Extension Leads, Glue, Tools and Silicone Fuel Line (For GP)

Recommended Hardware

Electric Motor & ESC - Electrospeed Boost 60 Power Pack
Servos - 4 (5 for IC) x MacGregor MG1703DS 3.3Kg.cm/0.10s Midi Digital Servo

Specifications

Wingspan:	59in (1500mm)
Fuselage Length:	53in (1350mm)
Weight (Ready to fly):	3.4kg (7.5lbs) - Will vary with Equipment Used
Engine:	.46 (2-Stroke) / .70 (4-Stroke)
Radio:	Minimum 6-Channels with 5 (4 servos for electric) Servos
Electric Motor:	Electrospeed Boost 60 Power Pack
Battery:	Lipo 5-Cell, 4250mAh
