Stick 1500 60.2" Wingspan ARF

Buy On Hobbyplastic.co.uk

Additional Images:

Click On Images to Enlarge

Overview

The Stick Sport is a versatile 'tail dragger' sports trainer, an excellent sport flyer that can moonlight as a club trainer, with the added versatility to choose either glow or electric power.

The large wing is a 2 piece bolt on, as is the tailplane, for fast field assembly. The Stick also features a removable hatch for fuel tank access. Those wanting to build the Stick as electric can use this hatch to access flight packs - There's even a removable battery tray included!

The build quality of this ARF is impeccable with Balsa and ply construction throughout ensuring this bird will stand the test of time. The Stick is nicely constructed, tough and practical, it is also a really nice price for a model of this size and should be really cheap to build, the old adage "the bigger they are, the better they fly" certainly applies to the Stick, it is the perfect club trainer that can be built easily, quickly and cheaply!

Features

All Balsa and Light-Ply construction
Control surfaces pre-hinged and installed
Steerable tail wheel

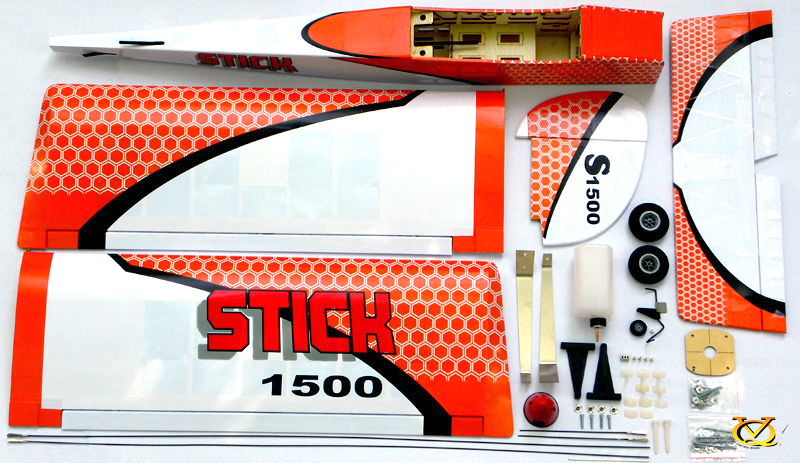

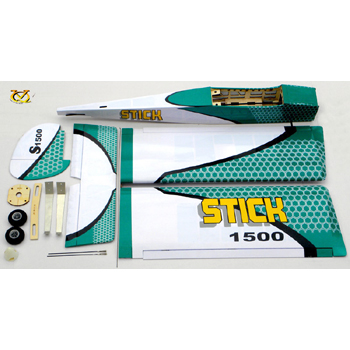

Includes:

Assembly instructions with stage-by-stage illustrations - [ Download ]
Fuselage
Wing panels
Tail plane and fin
Undercarriage
Wheels
Small items
Linkage hardware pack

Required Hardware (Not Supplied)

Transmitter, Motor, Propeller, Servos, Battery, Extension Leads, Glue, Tools and Silicone Fuel Line (For GP).

Recommended Hardware

Electric Motor & ESC - Electrospeed Boost 40 Power Pack or equivalent
Servos - 4 (5 for IC) x MacGregor MG1703DS 3.3Kg.cm/0.10s Midi Digital Servo

Specifications:

Wingspan:	60.2in (1540mm)
Fuselage Length:	44.5in (1130mm)
Weight (Ready to fly):	2.1kg ~ 2.3kg (4.63lbs ~ 5.07lbs)
Engine:	.40 ~ .46 (2 stroke)
Radio:	Minimum 5 channels with 5 (4 servos for electric) servos
Electric Motor:	Electrospeed Boost 40 Power Pack
Battery:	Li-Po Battery, 3200 mAh /3S 25 cells
