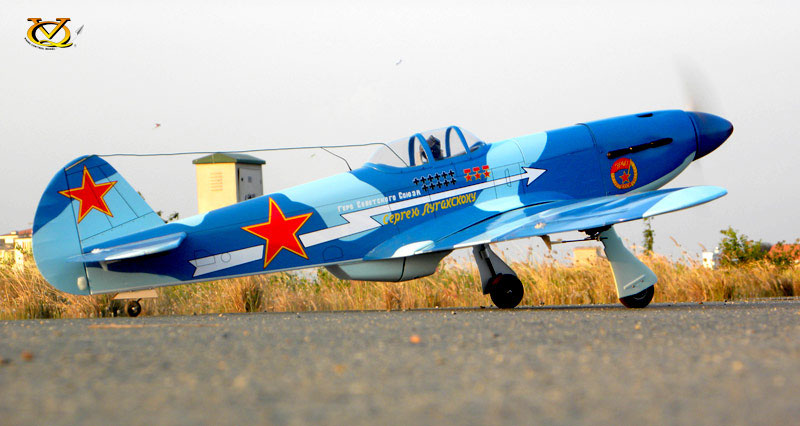

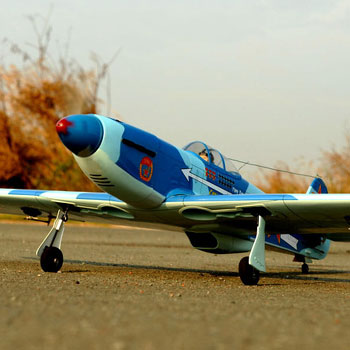

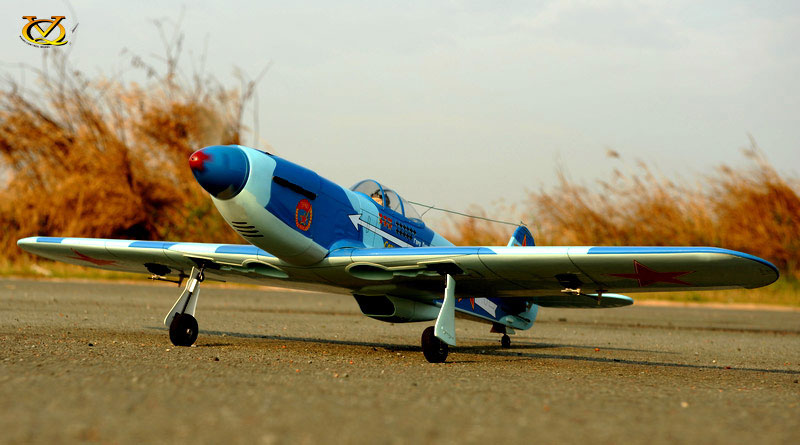

Yak-9 (Soviet) 59.8" Wingspan ARF

Buy On Hobbyplastic.co.uk

Additional Images:

Click On Images to Enlarge

Overview

From fall of 1942 Yak-9 fighter were in action on all fronts of the Soviet - Germany war. Yak-9 fighter were in service with the Soviet Air Force and Free French "Normandia-Neman" regiment. During 1942-1945 the fighter was produced in great numbers.

Many Soviet aces with their Yak-9 aircraft have beaten the Nazis. Among them were distinguished pilot twice Hero of the Soviet Union: A.Vorozheikin (52 victories), A Koldunov (46 victories), and French Pilot, Hero of the Soviet Union M. Albert (23 victories).

In total 15.470 Yak-9 fighters in 15 types and modifications were built

Features

Fully Covered with Weathered Detailing
All Balsa And Light-Ply Construction
Fibreglass Cowling
Hand Painted Pilot
Control Surfaces Pre-Hinged And Installed
Fixed undercarriage (Electric retracts sold separately - VQARE04)

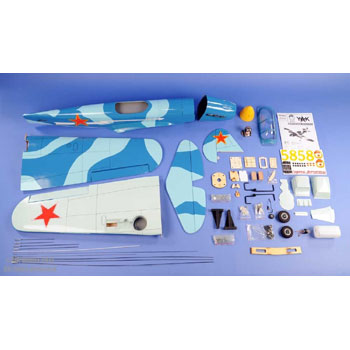

Includes

Assembly instructions with stage-by-stage illustrations - [ Download ]
Wheels
Servo Trays
Engine Mounts
Fuel Tank
Fibreglass Cowling
Spinner
Decals And All Hardware
Pilot Bust

Required Hardware (Not supplied)

Transmitter, Motor, Propeller, Servos, Battery, Extension Leads, Glue, Tools and Silicone Fuel Line (For GP)

Recommended Hardware

Electric Motor & ESC - Electrospeed Boost 40 Power Pack
Servos - 4 (5 for IC) x MacGregor MG1703DS 3.3Kg.cm/0.10s Midi Digital Servo

Specifications

Wingspan:	59.8in (1520mm)
Fuselage Length:	48.7in (1237mm)
Weight (Ready to fly):	2.7kg - 2.9kg
Engine:	.46-50 (2 stroke) / .70 (4 stroke)
Radio:	Minimum 5 channels with 5 servos (4 for electric)
Electric Motor:	Electrospeed Boost 40 Power Pack
Battery:	Lipo 14.8V, 3700mAh
