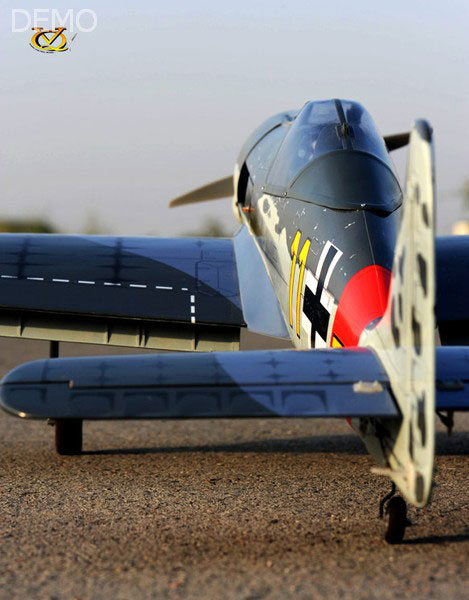

Focke-Wulf FW-190A 63" Wingspan ARF

Buy On Hobbyplastic.co.uk

Additional Images:

Click On Images to Enlarge

Overview

The Focke-Wulf Fw 190 Würger (English: Shrike) was a German single-seat, single-engine fighter aircraft designed by Kurt Tank in the late 1930s and widely used during World War II. Powered by a radial engine in most versions, the Fw 190 had ample power and was able to lift larger loads than its well-known counterpart, the Messerschmitt Bf 109.

The Fw 190 was used by the Luftwaffe in a wide variety of roles, including day fighter, fighter-bomber, ground-attack aircraft and, to a lesser degree, night fighter. Number build is over 20,000

Features

Fully covered with weathered detailing
All balsa and light-ply construction
Fibreglass cowling
Hand painted pilot
Pre-installed Canopy
Control surfaces pre-hinged and installed
Battery hatch
Flaps

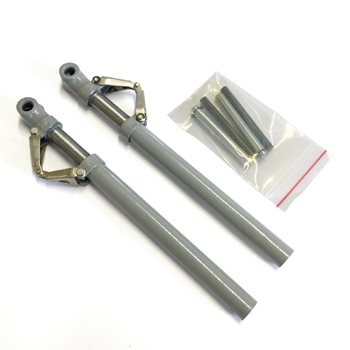

Fixed undercarriage (Electric retracts sold separately - VQARE10)

Includes

Assembly instructions with stage-by-stage illustrations - [ Download ]
Tail gear assembly
Wheels
Servo trays
Engine mounts, fuel tank
Fibreglass cowling
Spinner
Decals and all hardware.

Required Hardware (Not supplied)

Transmitter, Motor, Propeller, Servos, Battery, Extension Leads, Glue, Tools and Silicone Fuel Line (For GP)

Recommended Hardware

Electric Motor & ESC - Electrospeed Boost 60 Power Pack
Servos - 6 x (5 for electric) MacGregor MG1703DS 3.3Kg.cm/0.10s Midi Digital Servo

Specifications

Wingspan:	63in (1610mm)
Fuselage Length:	48in (1220mm)
Weight (Ready to fly):	2.9kg
Engine:	.60 - .65 (2 stroke) / .70 -.90 (4 stroke)
Radio:	Minimum 6-Channels with 6 (5 Servos for Electric) Servos
Electric Motor:	Electrospeed Boost 60 Power Pack
Battery:	Lipo 14.8V, 5000mAh
