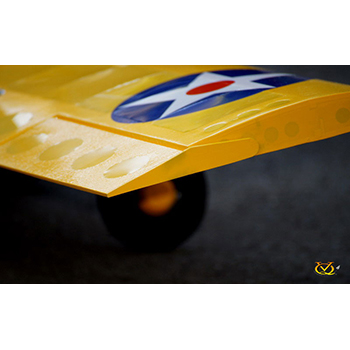

Volksplane 62.9" Wingpspan ARF

Buy On Hobbyplastic.co.uk

Additional Images:

Click On Images to Enlarge

Overview

The VP-1 is an all-wood, strut-braced open-cockpit single-seat low-wing aircraft designed for amateur construction. Designed to be simple to build and safe to fly, performance and appearance is of secondary importance. To make construction simple marine grade lt plywood is used for the slab-sided fuselage structure.

The Volksplane first flew in 1968. The wings were designed to be detachable to allow the aircraft to transported by road.

The VP-1 was designed specifically to utilize a modified VW Type 1 automotive engine from the VW Beetle. The fuselage is built in a warren truss arrangement where the exterior plywood takes the diagonal stress loads, therefore eliminating the diagonal members to maintain simplicity. The vertical and upright members are staggered to keep the joints as simple as possible. The wing is of a forward and aft blank spar design which uses stack-cut plywood ribs of equal size in order to keep construction time down. The ailerons are hinged directly behind the aft spar. For simplicity no flaps are provided. The wings and tail surfaces are fabric covered.

Features:

All Balsa and lite-ply construction
Fully covered with weathered detail
Fibreglass cowling
Hand painted pilot
Control surfaces pre-hinged and installed
Two piece wing with aluminium wing joiner
Big Battery Hatch for Easy change battery
Big Wheels for easy landing

Includes:

Assembly instructions with stage by stage photos - [ Download ]
Tail wheel assembly
Fibreglass cowling
Fibreglass painted pilot
Wheels
Aluminium wing joiner
Aluminium landing gear
All hardware

Required Hardware (Not Supplied)

Transmitter, Motor, Propeller, Servos, Battery, Extension Leads, Glue, Tools and Silicone Fuel Line (For GP).

Recommended Hardware (Not Supplied)

Electric Motor & ESC - Electrospeed Boost 40 motor
Servos - 4 x MacGregor MG1703DS 3.3Kg.cm/0.10s Midi Digital Servo

Specifications:

Wingspan:	62.9in (1600mm)
Fuselage Length:	46in (1170mm)
Weight (RTF):	2.5 – 2.7 kg - Will vary with equipment in use
Radio:	5 chanels with 4 servos
Electric Motor:	Electrospeed Boost 40 motor or any Electric Motor same size
Battery:	Lipo 14.8V 3700 mAh-4000 mAh
