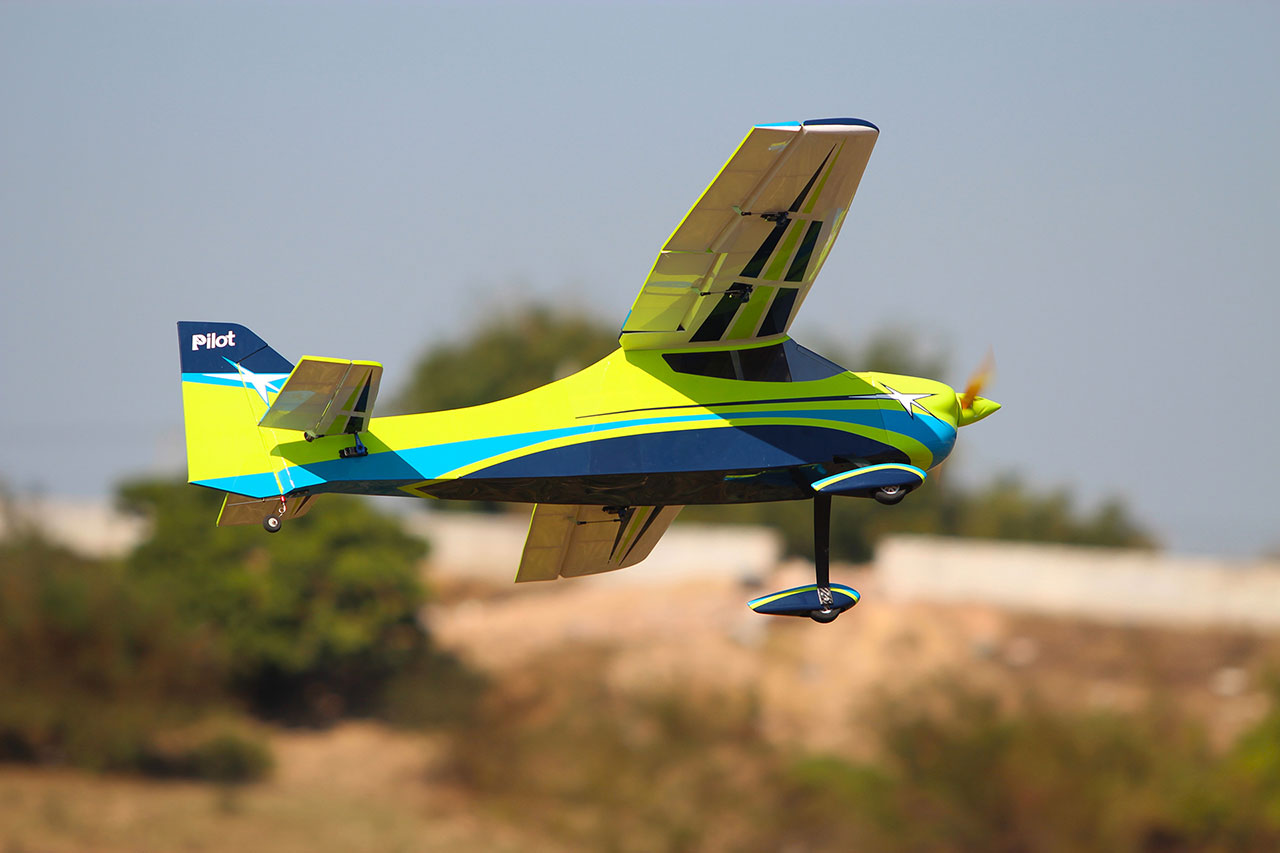

Pilot-RC 67in (1.7m) Skywolf V2

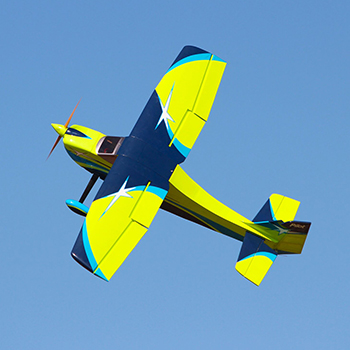

Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 04)

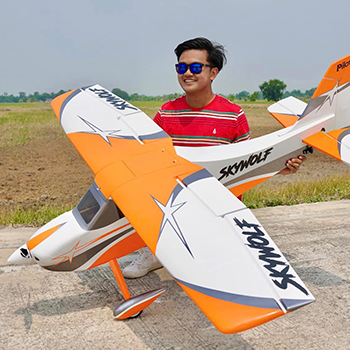

Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 05)
Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 05)

Please note: The wheel spats on the 67in Skywolf V2 are only one colour not patterned as shown.

enlarge-icon  Click On Images to Enlarge

Overview

A true aeromodel, designed for pure fun and simplicity. From slow flight to fun-fly and even some 3D, this is a surprisingly capable acrobatic model. Designed by Jan Spatny from Czech Republic.

Specifications

Model:Sky-Wolf
Wingspan:67in (1.7mm)
Length:56in (1.45m)
Wing area:808sq in (5,214sq cm)
Weight:3.4kg (8.1 lbs)

Features

  • Strong yet light weight design, good for aerobatic flying and can even hover!
  • Highly prefabricated, experienced builders can have air ready in under a day
  • Pre-installed hinges on ailerons, flaps and rudder (glued and sealed)
  • Internally mounted cowling – so no external screws exposed
  • Removable wings with quick release system
  • Laser engraved motor mounting position
  • Open construction allows for easy canister installation for 15-20cc size engine
  • Quick release front windshield / top-hatch, allowing easy access to replace batteries in electric setups

Included Hardware:

  • Complete air frame with all basic accessories (such as carbon fibre undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
  • Pre-installed hinges and pre-mounted canopy
  • Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
  • Wheels and wheel axels
  • Pre-prepared pushrods with ball links
  • Matching plastic spinner

Required Hardware:

Motor: 15-20cc or equivalent electric

Servos: 6 high torque plus throttle // Uses x1 per aileron, x1 per flap, x1 per elevator and x1 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Recommended Hardware:

Servos: MacGregor MGB5216HV 16.0kg/0.08s Brushless High Voltage Servo

Servo arms: Pilot-RC 1.6in Aluminium arms (PIL302)

Colour Scheme Covering References:

Skywolf (Green/Blue - 04)

Skywolf (Orange/White - 05)

Motor: Dualsky GA2000R / ESC: Dualsky 120A / Prop: Wood 18×10 /Mania X 6s 5500mah

Please note: The wheel spats on the 67in Skywolf V2 are only one colour not patterned as shown.

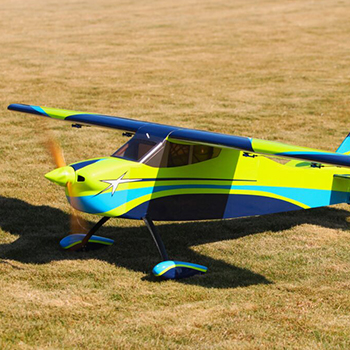

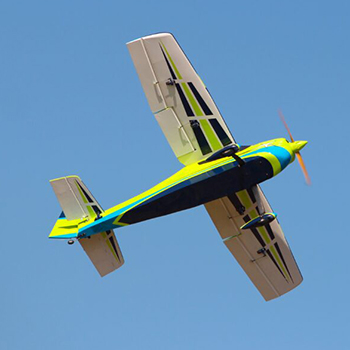

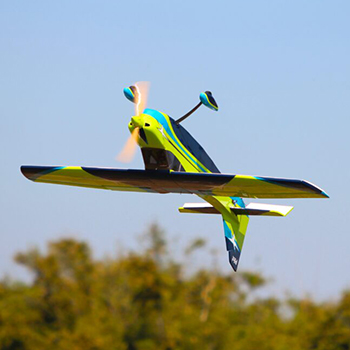

Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 04)
Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 04)
Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 04)
Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 04)
Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 04)
Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 04)
Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 05)
Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 05)
Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 05)
Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 05)
Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 05)
Pilot-RC 67in (1.7m) Skywolf V2 (Scheme 05)

Build Information:

Cowl Size:

Pilot-RC Slick Cowl Size

A: 187mm | B: 180mm | C: 190mm | D: 170mm

Exhaust Tunnel Size:

Pilot-RC Slick Exhaust Tunnel Size

A: 453mm | B: 64mm | C: 453mm | D: 72mm | E: 132mm | F: 153mm

Rudder Horns And Pull Pull Location:

Pilot-RC Slick Rudder Horns and Pull Pull Location

A: N/A | B: N/A | C: N/A | D: 21mm | E: N/A

Extension Wire Lengths:

Throttle: 7.5cm

Each wing: Flap 15cm | Aileron 30cm (to reach receiver direct)

Each elevator: 60cm

Each rudder servo:60cm

Centre Of Gravity:

95mm - Measured back from leading edge of the wing at the fuselage. There is a marking on the root of the wing.

Pilot-RC logo

Order Code: PIL795/796
Manufactured By Pilot-RC
