Pilot-RC 73in (1.867m) Wingspan Pitts S2B

  Click On Images to Enlarge

Overview

Bring on the fun, with what is probably the best looking biplane out there. Fear not about long setup times of traditional biplanes, Pilot-RC’s innovative and patented systems allow you to have the model completely put together in under 5 minutes, to then unleash the acrobatic and 3D monster that our Pitts.

Specifications:

Model:	Pitts S2B
Wingspan:	73in (1.867m)
Length:	71in (1.760m)
Wing area:	1720sq in (1109sq cm)
Weight:	20.8lbs (9.7kg)

Features:

• NEW! Pilot-RC new and patented quick release system for fast wing mounting at the field.
• NEW! Pilot-RC new quick release system for wing and stabilizer tension wires.
• Special Pilot-RC no screw canopy. Quick release with new security latch design.
• Strong but light, specially developed for precision acrobatic and extreme 3D flying
• Highly prefabricated, experienced builders can have air ready in under a day
• Pre-installed hinges (glued and pinned)
• Internally mounted cowling – so no external screws exposed
• Removable wings , wing stuts and stabs.
• Laser engraved motor mounting position

Included Hardware:

• Complete air frame with all basic accessories (such as carbon fiber main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
• Pre-installed hinges and pre-mounted canopy
• Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
• Wheels, axels and wheel pants
• Pre-prepared pushrods with ball links
• Matching carbon spinner, 4in

Required Hardware (Not Supplied)

Motor: 50-76cc

Servos: 7-8 high torque plus throttle // Uses x1 per aileron (total x4), x1 per elevator and x1 on rudder

Also requires all the usual accessories such as transmitter, receiver, batteries, powerbox and possibly other small accessories.

Recommended Hardware (Not Supplied)

• Servos: MacGregor MG7232HV 31.5Kg.cm/0.09s High Voltage Servo or MacGregor MGB6928HV 28Kg/0.06s Brushless High Voltage Servo
• Servo arms: Pilot-RC 1.6in Aluminium arms (PIL302)
• Engine: DLE-60 Twin or EME-70 Twin | EME-70AS Twin with Auto Start
• Electric Motor: Dualsky GA6000 Series
• Wingbags: Pilot-RC 73in (60cc) Pitts Wingbag (PIL606)

Video:

Pilot-RC: Pitts S2B

This very simple videos shows just how quickly you can put together and then take apart our new Pilot-RC 87" Pitts at the flying field.

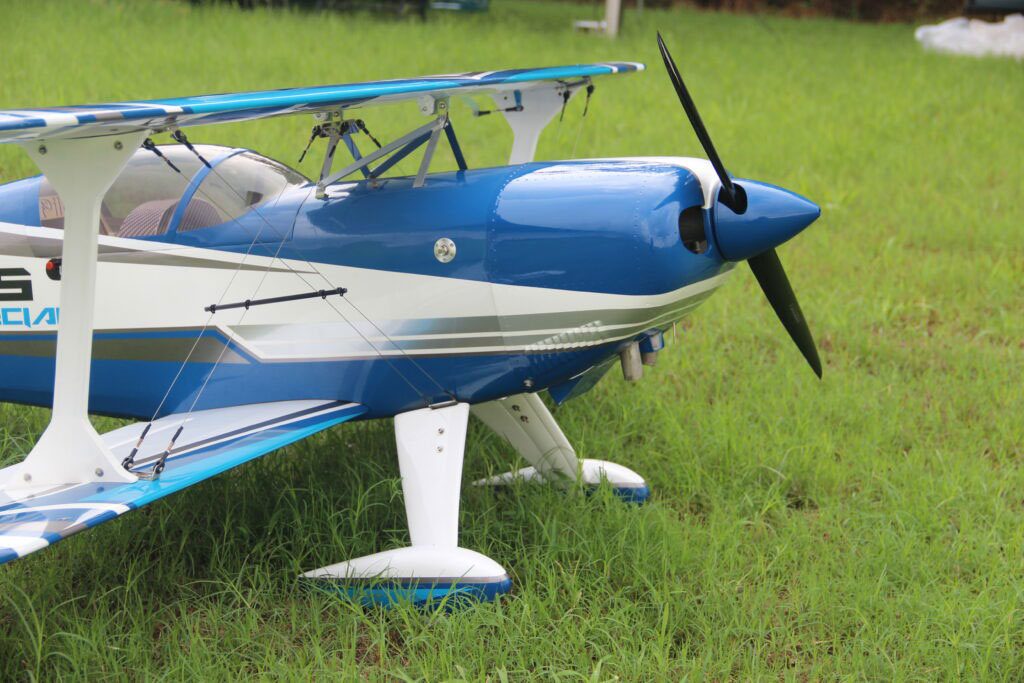

Gallery:

Will It Fit In My Car?

Colour Schemes Available:

Scheme 01 - Orange/White

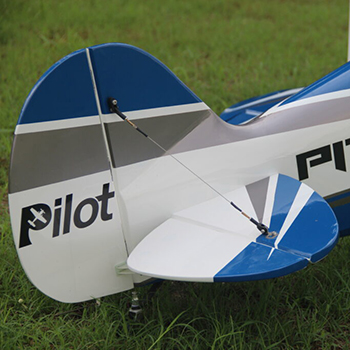

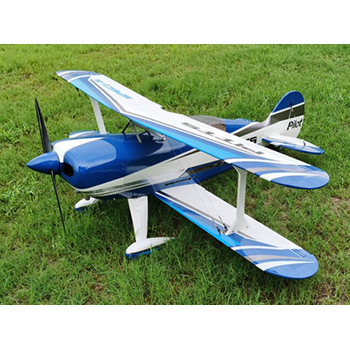

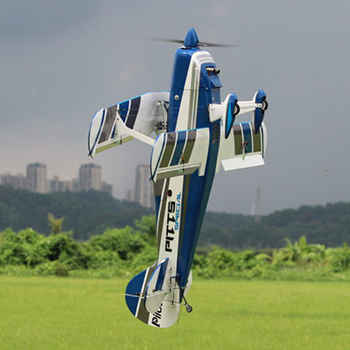

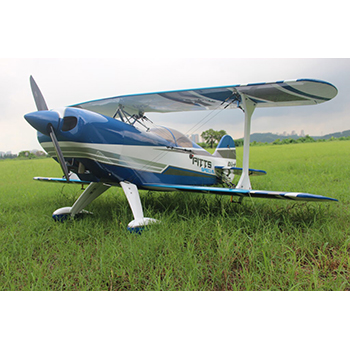

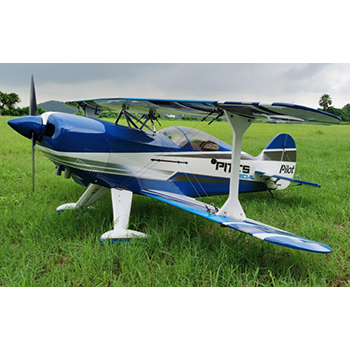

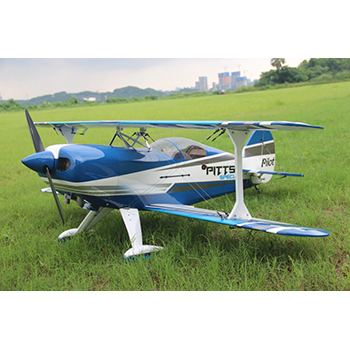

Scheme 02 - Blue/White

Scheme 03 - Bulldog

Build Information:

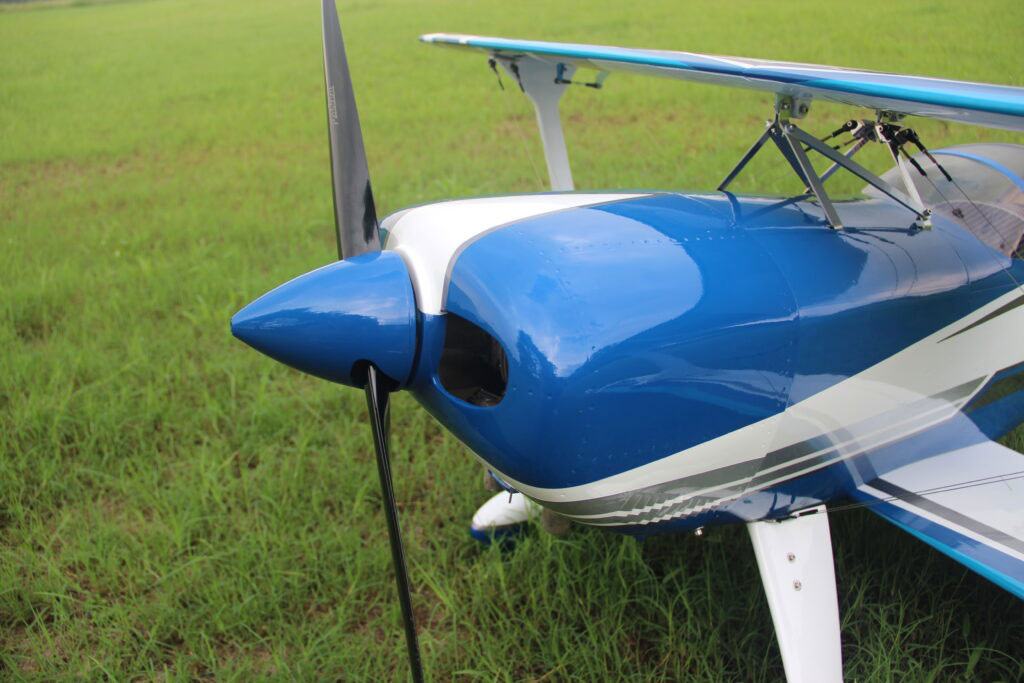

Cowl Size

A: 252mm – B: 307mm – C: 326mm – D: 299mm

Exhaust Tunnel Size

A: 290mm – B: 115mm – C: 328 – D: 107mm – E: 153mm

Extension Wire Lengths

• Throttle: 35cm
• Upper wing: No extension required
• Wing strut: (x2) 46cm
• Lower wing: (x2) For wing servo: 12cm | (x2) To wing strut: 55cm
• Elevator: (x2) 50cm
• Rudder: For Pull-Pull 10cm

Centre of Gravity

175mm - Measured back from leading edge of the top wing at the fuselage.

Manuals/Downloads

• Coming Soon...
