Curtiss P-40 'Flying Tigers' 61.8in Wingspan ARF

Buy On Hobbyplastic.co.uk

Additional Images:

Click On Images to Enlarge

Overview

The Curtiss P-40 Kittyhawk was an American single-engined, single-seat, all-metal fighter and ground-attack aircraft that first flew in 1938. Famed for its shark tooth design the Curtiss P-40 Kittyhawk, or Warhawk and Tomahawk as it was also known, was used by the 'Flying Tigers', the American Volunteer Group in China.

The P-40 design was a modification of the previous Curtiss P-36 Hawk which reduced development time and enabled a rapid entry into production and operational service. The Warhawk was used by most Allied powers during World War II, and remained in frontline service until the end of the war. It was the third most-produced American fighter, after the P-51 and P-47; by November 1944, when production of the P-40 ceased, 13,738 had been built.

Features

Fully covered in weathered detail
All balsa and lite-ply construction
Fibreglass cowling

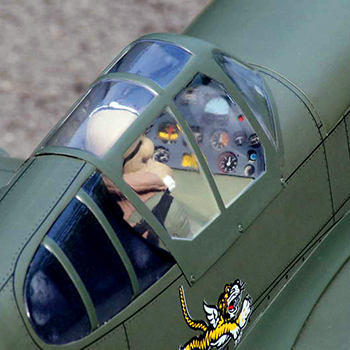

Hand painted pilot
Pre-installed canopy
Control surfaces pre-hinged and installed
Fixed undercarriage (Mechanical retracts sold separately - VQAR07)

Includes

Assembly instructions with stage-by-stage illustrations - [ Download ]
Tail gear assembly
Wheels
Servo trays
Engine mounts
Fuel tank
Fiberglass cowling
Spinner
Decals and all hardware.

Required Hardware (Not supplied)

Transmitter, Motor, Propeller, Servos, Battery, Extension Leads, Glue, Tools and Silicone Fuel Line (For GP)

Recommended Hardware

Electric Motor & ESC - Electrospeed Boost 60 Power Pack
Servos - 7 (6 for EP) x MacGregor MG5510DS 9.98Kg.cm/0.12s Standard Size Digital Servo
IC Engine: Saito FA-82B 4-Stroke Glow Engine

Specifications

Wingspan:	61.8in (1570mm)
Fuselage Length:	53.5in (1360mm)
Weight (Ready to fly):	3.3 - 3.6kg (Will vary with equipment used)
Engine:	.60 (2 stroke) / .90 (4 stroke)
Radio:	Minimum 6-Channels with 7 Servos (6 for Electric)
Electric Motor:	Electrospeed Boost 60 Power Pack
Battery:	Lipo 14.8V, 5000mAh
