Secraft Wing Bolts M6 V2 (Al-Screw Lock Type) (Red)

enlarge-icon  Click On Images to Enlarge

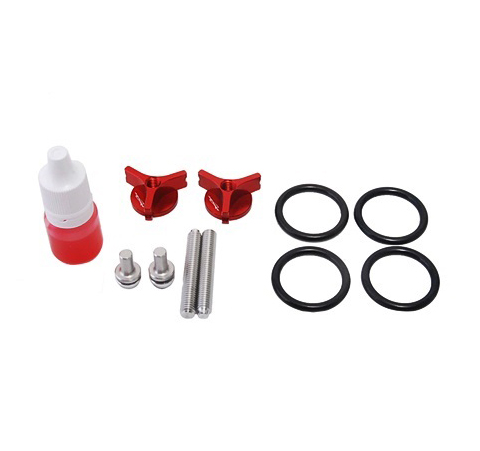

Secraft Wing Bolts M6 V2 (Aluminium Screw Lock Type).

Nut: Aluminium 6061-T6
Bolt: Aluminium 6061-T6

Total Weight: 22.8g (2per)
Al Bolt length: 40 mm
2 per package

Colour: Red


  • O-Ring P24: 4pcs (2pcs Spare)
  • Wing Nut: 2pcs Diameter: 30mm Thickness: 11mm
  • Wing Bolt M6 x 40mm: 2pcs
  • M3 x 10mm Bolt: 2pcs
  • M3 Bolt Washers: 2pcs
  • Lock Pin: 2pcs
  • Threadlock: 1 bottle

There are two methods of installation for these wing bolts

Method 1
  1. Put the thread lock to on screws then build with the aluminum nuts.This is the use method which is general.
Method 2
  1. Put the thead lock to on wing nuts.
  2. Build your airplane with wings.
  3. Adjust the screws with wings nuts to suitable length.
  4. Make the aluminum nuts with the screws and should wait almost five hour.
  5. Finished appearance.

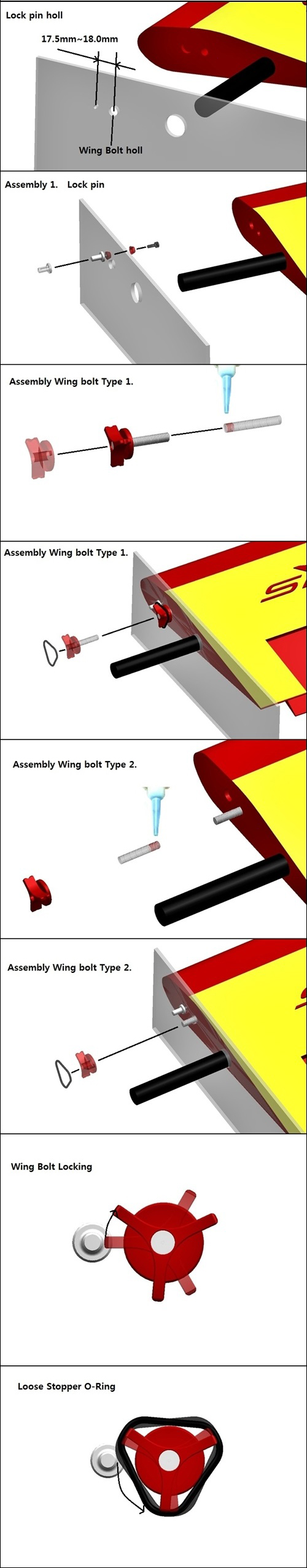

installation guide

Secraft Wing Bolts V2 (Al-Screw Lock Type)

Secraft logo

Order Code: SEC257
Manufactured By Secraft
