Pilot-RC Decathlon 150in Wingspan

Pilot-RC 150in Decathlon - Blue/Red Colour Scheme
Pilot-RC 150in Decathlon - Red/White Star Colour Scheme
Pilot-RC 150in Decathlon - Red/White Star Colour Scheme

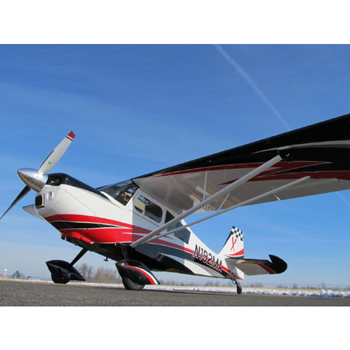

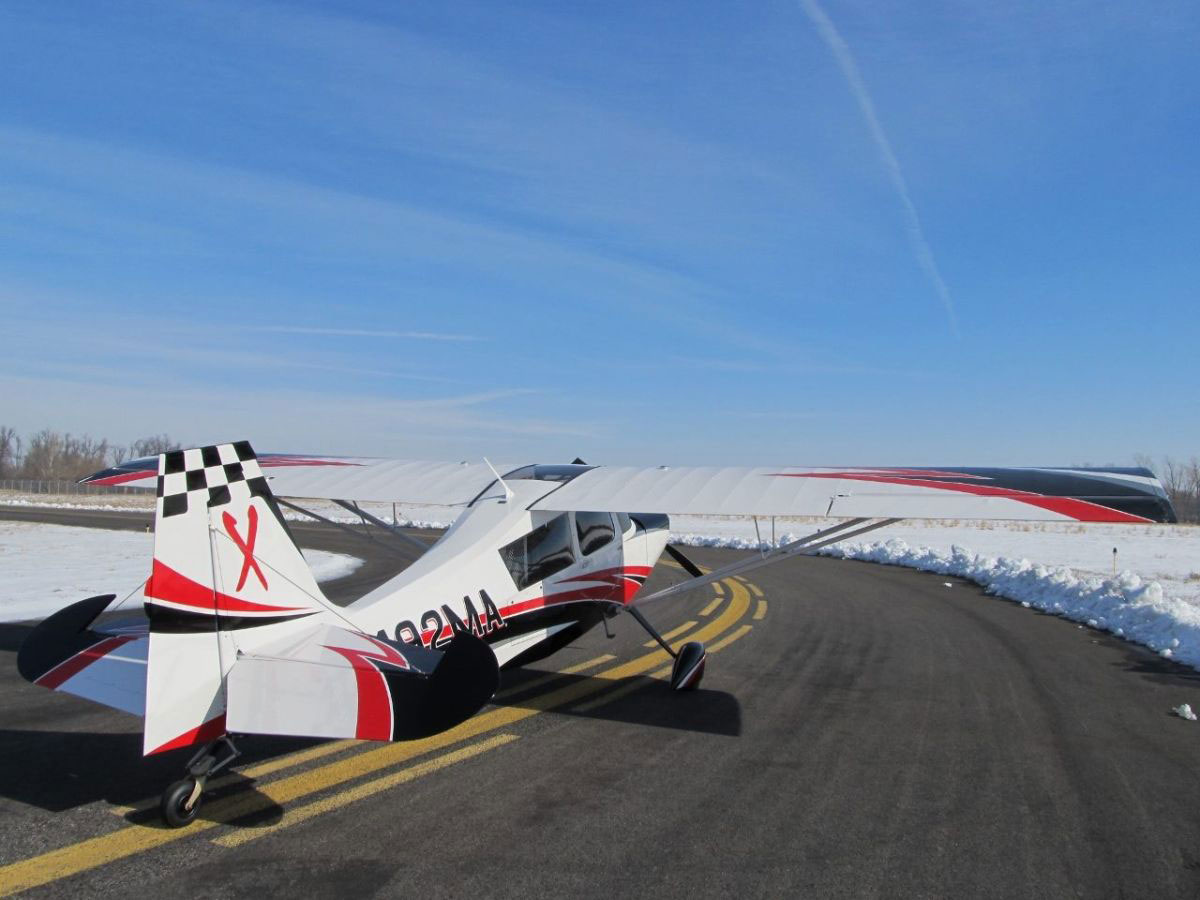

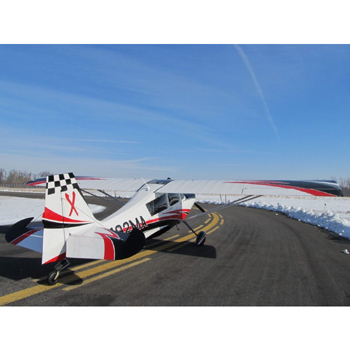

Pilot-RC 150in Decathlon - Silver/Black Colour Scheme
Pilot-RC 150in Decathlon - Silver/Black Colour Scheme
Pilot-RC 150in Decathlon - Yellow/Black/Red (10)
Pilot-RC 150in Decathlon - Yellow/Black/Red (10)
Pilot-RC 150in Decathlon - Yellow/Black/Red (10)

enlarge-icon  Click On Images to Enlarge

Overview

Product Features

  • Strong yet light weight design, good for acrobatic flying and can even hover!
  • Fast to put together at the field
  • Highly prefabricated, experienced builders can have air ready in under a day
  • Pre-installed hinges (glued and pinned)
  • Internally mounted cowling - so no external screws exposed
  • Removable rudder (as well as removable wings and stabs)
  • Laser engraved motor mounting position and multiple servo locations available for Rudder setup (pull pull or direct push pull)
  • Optional LED Light Set

Please note: Instruction manuals are not supplied with Pilot-RC Kits. Generic manuals are downloadable from macgregor.co.uk or pilot-rc.com

Control horns mentioned within manuals are no longer supplied with Pilot-RC ARF Kits.

Product Description

If you are looking for a big plane that runs on a small engine and can still do all the tricks while still being stable, forgiving and even relaxing... You need a Decathlon!

The Decathlon is manufactured using advanced building techniques for maximum strength and lightest weight. The kit features many premium light weight carbon fibre components, hardware, genuine Oracover(Ultracote) covering, laser cut wood, and the best adhesives. The Decathlon's light weight allows optimum flight performance from exciting aerobatics or just relaxing.

At Pilot they make every effort to provide the highest quality products and customer service. Their goal is a happy customer having a wonderful time assembling and flying Pilot model aircraft.

Included Hardware

  • Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
  • Pre-installed hinges and pre-mounted canopy
  • Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
  • Wheels, axels and wheel pants
  • Pre-preared pull-pull wires and pushrods with ball links
  • Matching carbon spinner

Required Hardware

Motor: 80-120cc or equivalent electric

Servos: 10 high torque (minimum 20kg) plus throttle // Uses x2 per aileron, x1 per flap, x1 per elevator and x2 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.

Specifications

Wingspan: 150in (3.81m)
Wing Area: 3758sq in (24245 sq cm)
Fuselage length: 102in (2.58m)
Weight: 39.24lbs (17.8kg)
Engine Required: 100 - 120cc

Note: Due to constant design improvements Pilot-RC reserves the right to change and modify design specifications without notice. Pilot's goal is to provide you with the highest performing airframes in the world using the latest technology, building techniques and materials.

Pilot-RC logo

Order Code: PIL090/PIL092/PIL788
Manufactured By Pilot-RC
